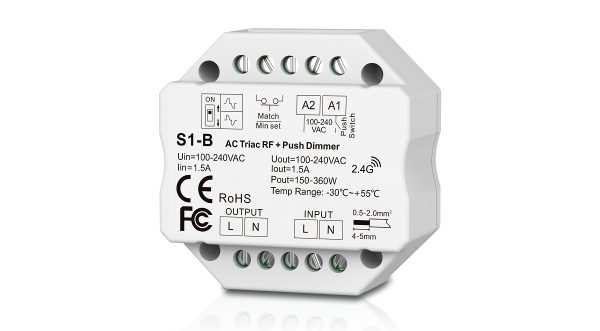

Single-channel 230V dimmer controller S1-B with TRIAC dimming function + Push DIM

Description

The single-channel 100V-240V controller is designed for switching electrical devices on/off or dimming them (voltage control). The controller features a “Push-Dim” function, meaning you can connect a standard retractive (bell-type) switch to it. You can also control this device using SKYDANCE remote controls operating on a 2.4GHz frequency.

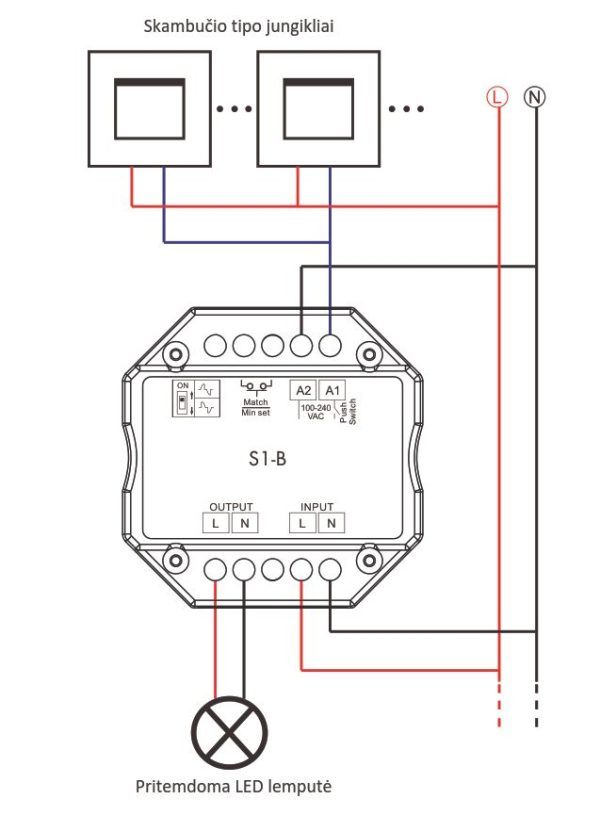

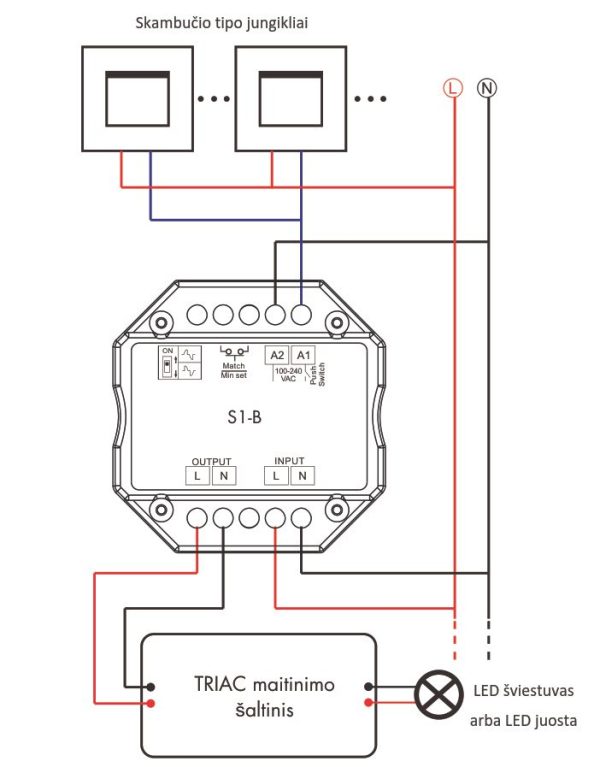

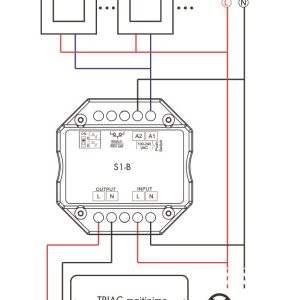

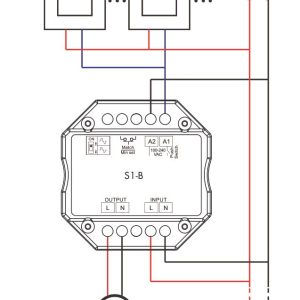

Pairing the controller with a remote: Connect the controller to the circuit as indicated in the wiring diagram. Once properly connected, the controller’s indicator light will glow blue. To pair the controller with a remote, briefly press the MATCH button on the controller. The light will start flashing, indicating that pairing mode is active. Press any button on your chosen remote control (if it is a multi-zone remote, press the desired zone button). The controller’s indicator light will flash to confirm a successful pairing between the controller and the remote. Verify the connection by turning the controller on and off using the remote control. To delete all pairings, press and hold the MATCH button for 5 seconds. The controller’s light will flash 5 times to confirm a successful reset.

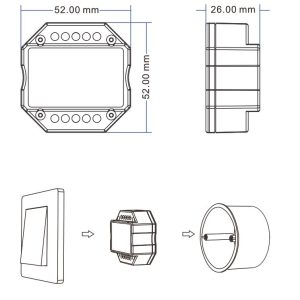

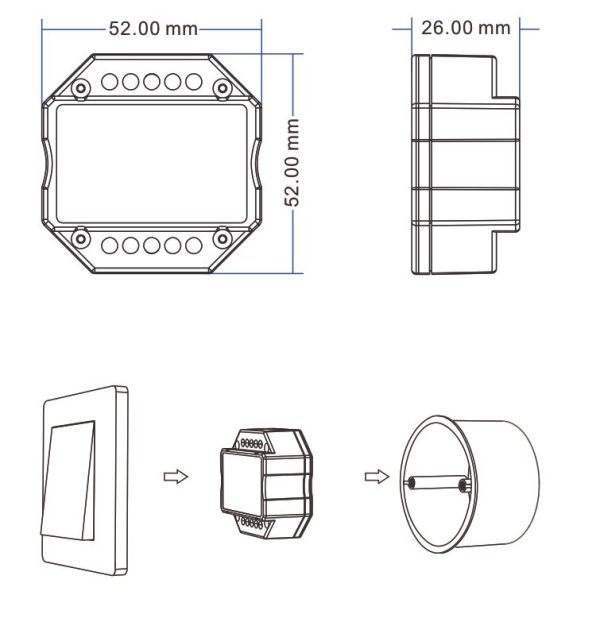

A minimum dimming level can be set. The controller features a dimming memory function, meaning that when turned back on, the device restores the light intensity level set prior to being turned off. It fits easily into a standard wall mounting box.
